GAS ENGINES

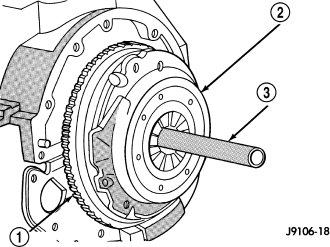

NOTE: Disc must slide freely on transmission input shaft splines.

NOTE: If not marked, the flat side of disc hub goes towards the flywheel.

CAUTION: Use only the factory bolts to mount the pressure plate. The bolts must be the correct size. If bolts are too short, there isn't enough thread engagement, if too long bolts interfere with the Dual Mass Flywheel.

CAUTION: The bolts must be tightened evenly and to specified torque. Failure to follow these instructions will distort the pressure plate.

CAUTION: Do not over lubricate shaft splines. This will result in grease contamination of disc.
